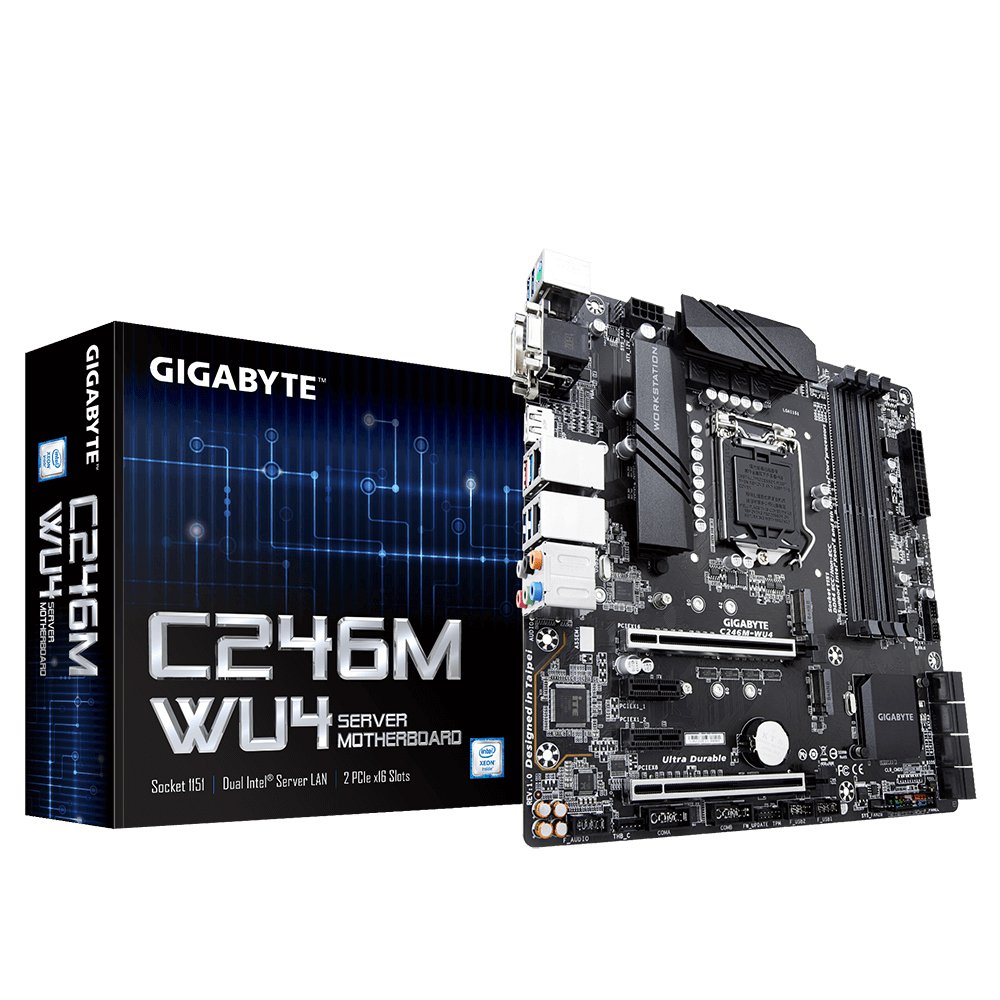

2 PCIe x16 slots, Dual Intel® Server GbE LAN, 8 SATA Connectors, Dual M.2, USB 3.1 Type-A connection
Supports Intel®1151 Xeon® E Processors and 9th/8th Gen. Intel® Core™ / Pentium® / Celeron® Processors LGA1151
Supports DDR4 ECC & Non-ECC Un-buffered memory
2 PCIe x16 Slots & 2 PCIe x1 Slots
Dual Intel® Server GbE LAN support Intel® vPro Technology
Large storage capacity: 8 SATA3 Ports
Dual M.2 support Intel® Optane™ Memory
Next-gen transfer speeds: USB 3.1 Type-A connection
Supports up to Three Monitor Displays
Monitor HDDs status by SGPIO
Thông số:
LGA1151 package:
1. Intel® Xeon® E series processors
2. 9th and 8th Generation Intel® Core™ processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® C246 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® UHD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* If you install a graphics card in the PCIEX16 slot and the GC-TITAN RIDGE card in the PCIEX8 slot, make sure to set the PCIE Bifurcation Support item to PCIE x8/x8 in BIOS Setup.
3. 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
3. 8 x SATA 6Gb/s connectors (SATA3 0~7)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:
1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2. 7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 8 x SATA 6Gb/s connectors
5. 2 x SATA detection headers
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.1 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x S/PDIF Out header
13. 1 x Thunderbolt™ add-in card connector
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
15. 2 x serial port headers
16. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x USB 3.1 Gen 2 Type-A port (red)
6. 5 x USB 3.1 Gen 1 ports
7. 2 x RJ-45 ports
8. 6 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
System Information Viewer
2. Support for Q-Flash
Bundled Software
1. Norton® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
